Meril Life Sciences / Hematology & Coagulation

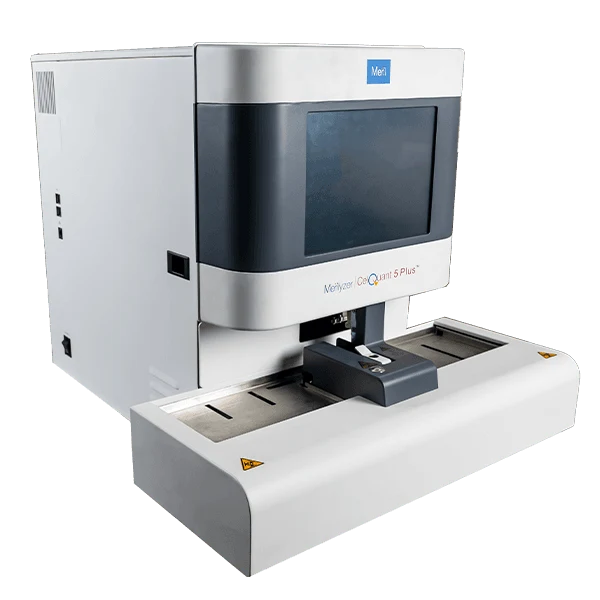

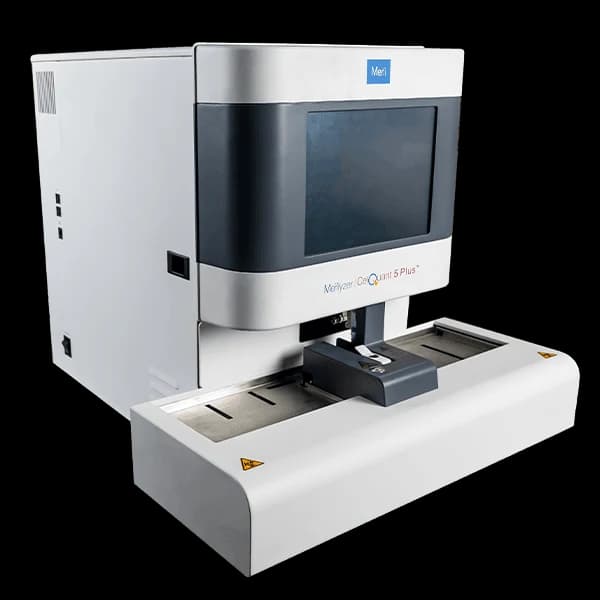

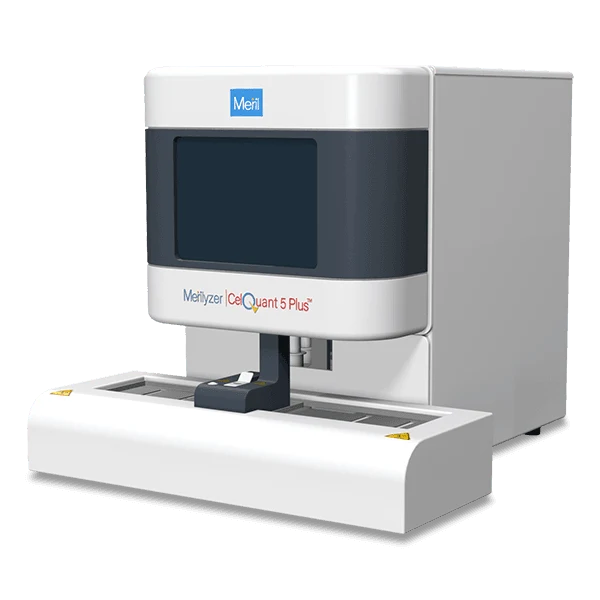

Merilyzer Celquant 5 Plus™
5-Part Differential Analyzer
Machines & equipment
Meril Merilyzer Celquant 5 Plus is a 5 part hematology analyzer used for CBC, CRP, and differential blood analysis in clinical laboratory settings.
01 / A CLOSER LOOK
Features that
define the product.
- Throughput CBC+DIFF: 60 samples per hour
- Gives flagging description of cells like Leukopenia, Leukocytosis, Neutropenia, Polycythemia Immature, Small cellular & RBC Large cellular RBC etc
- Manual or automated sampling with continuous loading
- Cap piercing autosampler for 50 samples with 1 dedicated STAT position
- 25 reportable parameters, 10 research parameters, scattergram and histogram
- Large storage capacity up to 200,000 samples
02 / HOW IT WORKS
The technology.
Test Principle - Semiconductor laser Flow Cytometry + Cytochemical staining for WBC differential Cyanide-free colorimetry for Hemoglobin test Impedance method for RBC and PLT counting
03 / TECHNICAL DETAILS
Specifications.
| Parameter | 25 Reportable Parameters: WBC, NEUT#, LYMP#, MON#, EO#, BASO#, NEUT%, LYMP%, MON%, EO%, BASO%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT. 15 Research Parameters: Blast#, Blast%, ALY#, ALY%, IMM#, IMM%, LEFT#, Left%, NRBC#, NRBC%, 2 scattergrams, 2 histograms |
|---|---|
| Flagging Description | Leukocytosis, Leukopenia, Neutrophilia, Neutropenia, Neutrophil left shift, Neutrophil toxic change, Basophils, Atypical lymphocyte, Monocyte increase, Small cellular RBC, Large cellular RBC, Hypochromia, Anemia, Polycythemia, Thrombocytosis, Thrombocytopenia |
| Immature cells (Atypical lymph, Blast, Immature Granulocyte, NRBC/PLT agg.) | |
| Test Principle | Semiconductor laser Flow Cytometry + Cytochemical staining for WBC differential Cyanide-free colorimetry for Hemoglobin test Impedance method for RBC and PLT counting |
| Reagent Type | Diluent & 3 types of lyse + Detergents |
| Throughput | CBC+DIFF: 60 samples per hour |
| Sample Mode | Whole-blood mode Micro-WBC mode Pre-dilute mode |
| Sampling Type | Manual or automated sampling with continuous loading |
| Data Storage Capacity | At least 200,000 results |
| Data System | RJ45 network interface, USB interface, Support bi-directional LIS (LIS software is provided with the instrument) |
| Power Consumption | 250VA |
| Dimension (D×W×H) | 686 mm × 555 mm × 532 mm |
| Weight | 48 kg (with auto-loader) |
