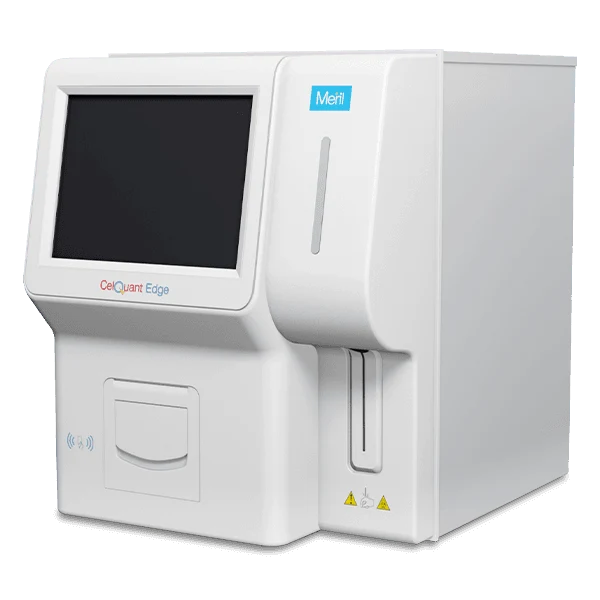

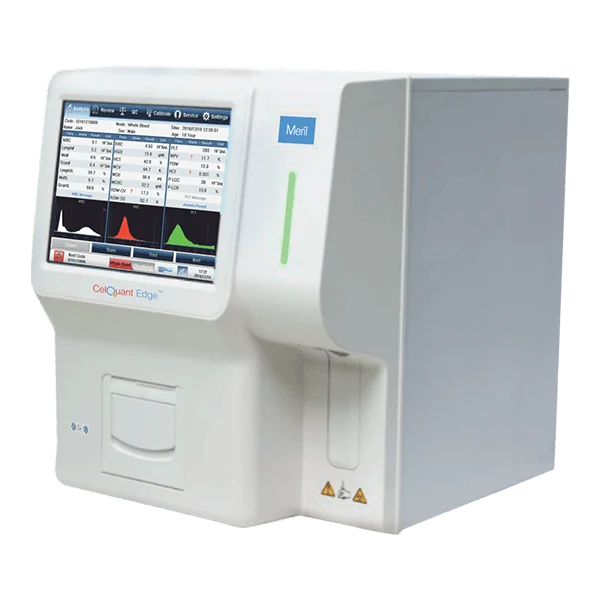

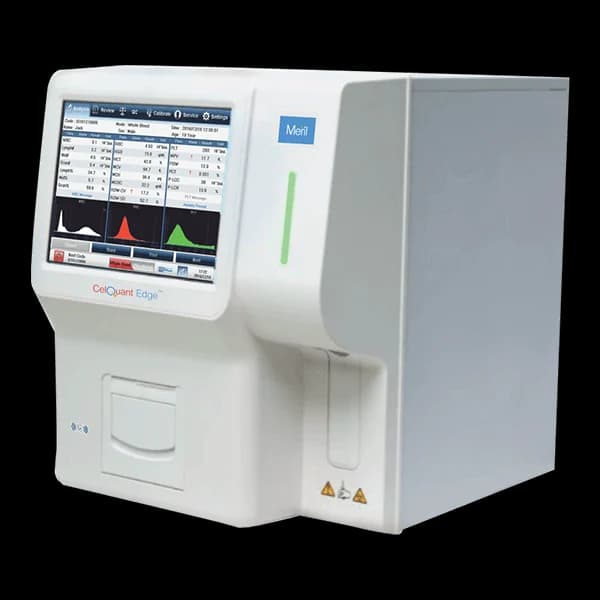

Merilyzer CelQuant Edge®
3-Part Differential Analyzer
Machines & equipment
Merilyzer CelQuant Edge 3 part hematology analyzer is a dual-channel system designed for CBC testing and blood cell analysis in diagnostic labs.
01 / A CLOSER LOOK
Features that
define the product.
- 10.4 inch true color TFT LCD & touch screen, more visible, Minimize the number of interface layers, pop-up soft keyboard, easy to operate.
- Several languages available, can switch language online.
- Normocytic and normochromic anemia, Macrocytic and normochromic anemia, Microcytic hypochromic anemia, Microcytic anemia.
- Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer.
- Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood.
- Include 9 QC files, automatically draw quality control chart and provide the average, SD, CV.
02 / HOW IT WORKS
The technology.
Principle - Electrical Impedance method for cell counting; Photometric Cyanide-free Hemoglobin estimation
03 / TECHNICAL DETAILS
Specifications.
| Parameters and Histograms | 21 Parameters, 3 Histograms (WBC, RBC, PLT) |
|---|---|
| WBC Parameters | WBC, Lymph%, Mid%, Gran%, Lymph#, Mid#, Gran# |
| RBC Parameters | RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD |
| PLT Parameters | PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Principle | Electrical Impedance method for cell counting; Photometric Cyanide-free Hemoglobin estimation |
| Sample Mode & Volume | Whole Blood Mode – 14 µL; Pre-diluted Mode – 20 µL |
| Aperture Diameter | 70 µm (RBC/PLT), 100 µm (WBC) |
| Printout | Built-in thermal printer, 80mm histogram width, Optional USB printer interface |
| Throughput | 60 Samples/Hour |
| Display | 10.4-inch TFT LCD with touch screen |
| Data Storage | 50,000 Patient Reports with Histograms, USB data backup, USB & RS232C Interface |
| QC and Calibration | 9 QC files, L-J Graph, Auto QC, CV and SD, Manual & Auto Modes |
| Communication / Output | LAN, RS232C, 4 USB Ports (for Printer, Barcode, Mouse, Keyboard) |
| Performance - Linearity | WBC: 0–100 (10³/µL), RBC: 0–10 (10⁶/µL), HGB: 0–25 (g/dL), HCT: 0–75 (%), PLT: 0–3000 (10³/µL) |
| Performance - Precision (CV%) | WBC: ≤2.0%, RBC: ≤1.5%, HGB: ≤1.5%, HCT: ≤2.0%, PLT: ≤5.0% |
