Merilyzer Quantilyte
Merilyzer
Machines & equipment

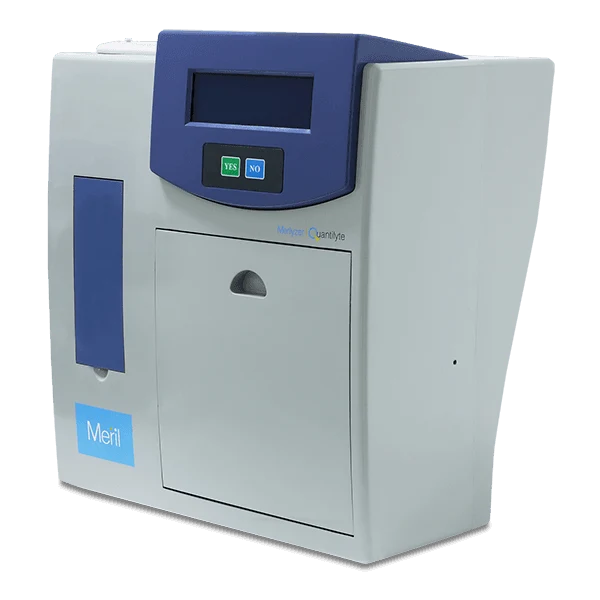

Merilyzer Quantilyte electrolyte analyzer is a laboratory instrument used for sodium, potassium, and chloride measurement through ISE technology.
01 / A CLOSER LOOK
Features that
define the product.
- Automatic calibration and two-point correction to adjust slope and intercept

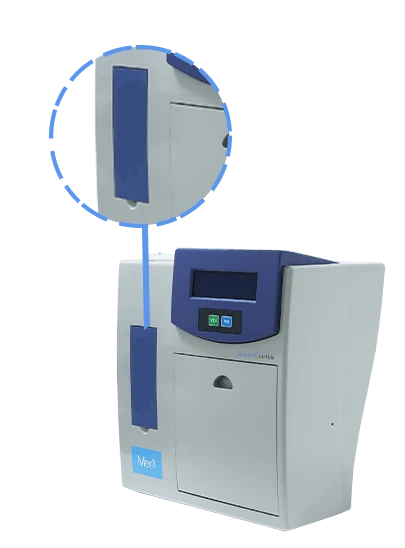

- Optional Sample Auto-loader
02 / HOW IT WORKS
The technology.
Principle - Ion Selective Electrode (ISE)
03 / TECHNICAL DETAILS
Specifications.
| Category | Specification |
|---|---|
| Principle | Ion Selective Electrode (ISE) |
| Sample | Serum, plasma, whole blood, cerebrospinal fluid (CSF), and diluted urine |
| Measuring Speed | ≤ 25 seconds |
| Sample Volume | 60 – 150 μL (depends on electrodes) |
| Sample Positions | 35 positions (including 1 QC) — only for sample autoloader |
| Storage Capacity | Up to 10,000 test results |
| Printer | Internal thermal printer |
| Interface | RS232 |
| Operating Temperature | 10°C to 30°C |
| Relative Humidity | ≤ 80% |
| Atmospheric Pressure | 86 – 106 kPa |
| Power Supply | 220V ± 22V, 50 ± 1Hz |
| Power Consumption | ≤ 120W |
| Dimensions (W × D × H) | 38 cm × 27 cm × 40 cm |
| Weight | Approx. 6 kg |
