Siemens Healthineers / Urinalysis

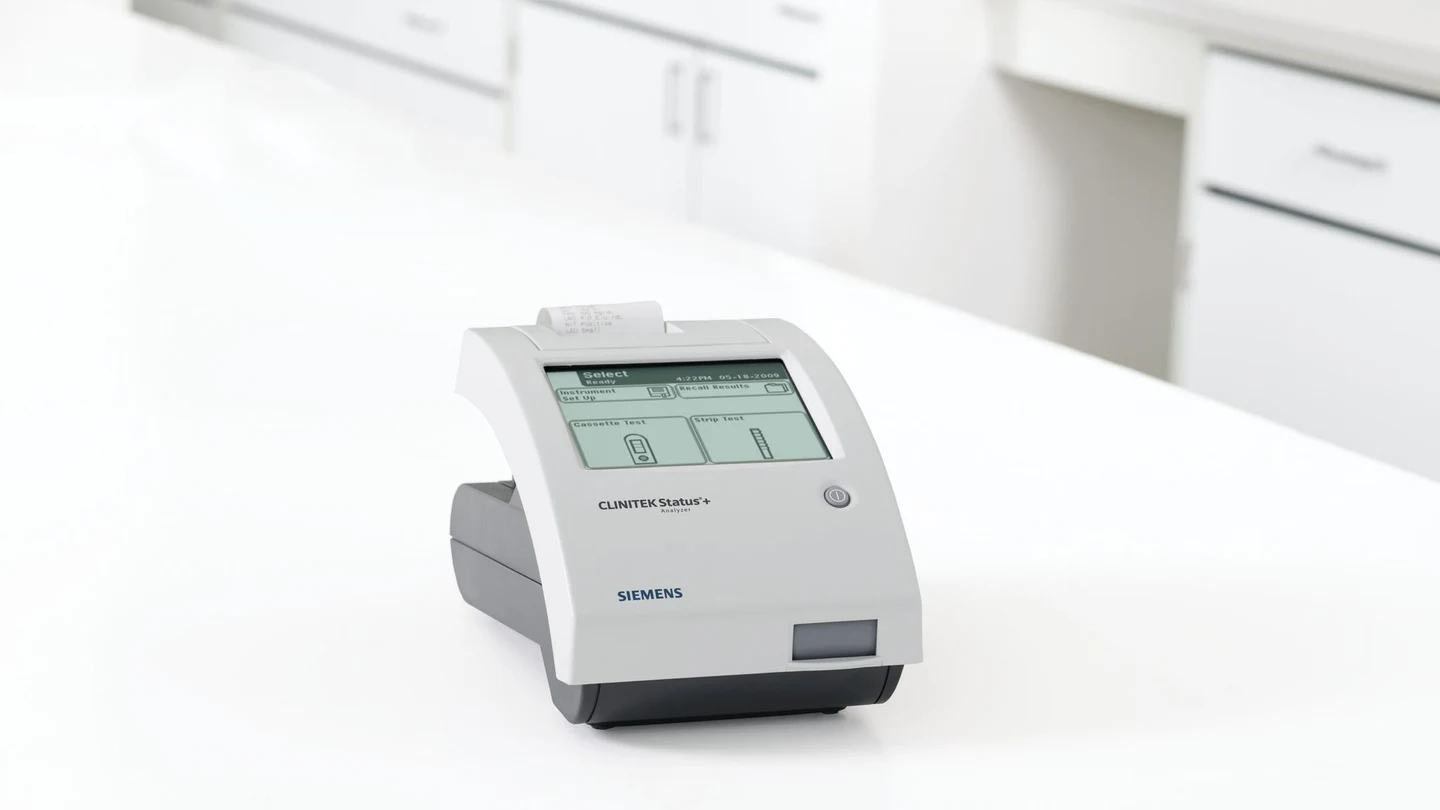

CLINITEK Status+ Analyzer
Semi-automated POC urine-strip reader with touchscreen and integrated printing.
Machines & equipment
Semi-automated POC urine-strip reader with touchscreen and integrated printing.
01 / A CLOSER LOOK
Features that
define the product.
- Semi-automated POC urine-strip reader with touchscreen and integrated printing.
- Automatic strip identification and humidity checks on supported strips.
- Results in about one minute; optional connectivity upgrade.
02 / HOW IT WORKS
The technology.
Automated reading and timing of Siemens urine strips and CLINITEST hCG cassettes; automatic calibration.
03 / TECHNICAL DETAILS
Specifications.
| Intended Use | |
| The CLINITEK Status®+ Analyzer is a point-of-care urinalysis analyzer designed to read only Siemens Healthcare Diagnostics urine test strips and CLINITEST hCG cassettes. | |
| Semi-quantitative Tests Measured | |
| Routine urine tests | albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity, and urobilinogen |
|---|---|
| Kidney disease test | albumin-to-creatinine ratio |
| Pregnancy test | Human Chorionic Gonadotropin (hCG) |
| User Interface | |
| Touchscreen | |
| Computer Interface | |
| Uni-directional via Serial Port (RS232) | |
| Data Entry | |
| Onboard touchscreen | |
| Power Requirements | |
| Electrical rating | 100V - 240V AC, 50-60 Hz (with in-line lead) |
| Battery operation | 6 AA batteries, non-rechargeable |
| Dimensions/Weight | |
| Depth | 10.70 in. or 27.2 cm |
| Width | 6.70 in. or 17.1 cm |
| Height | 6.20 in. or 15.8 cm |
| Weight | 3.65 lbs or 1.66 kg |
| Operation | |
| Temperature range | 18 to 30ºC (64 to 86ºF) |
| Humidity range | 18-80% Relative Humidity, non-condensing |
| Calibration | |
| Automatic, self-calibrating | |
| Memory | |
| Patient test results | 700 |
| QC test results | 0 |
| Operator IDs | 700 |
