Medsource Ozone / Immunoassay

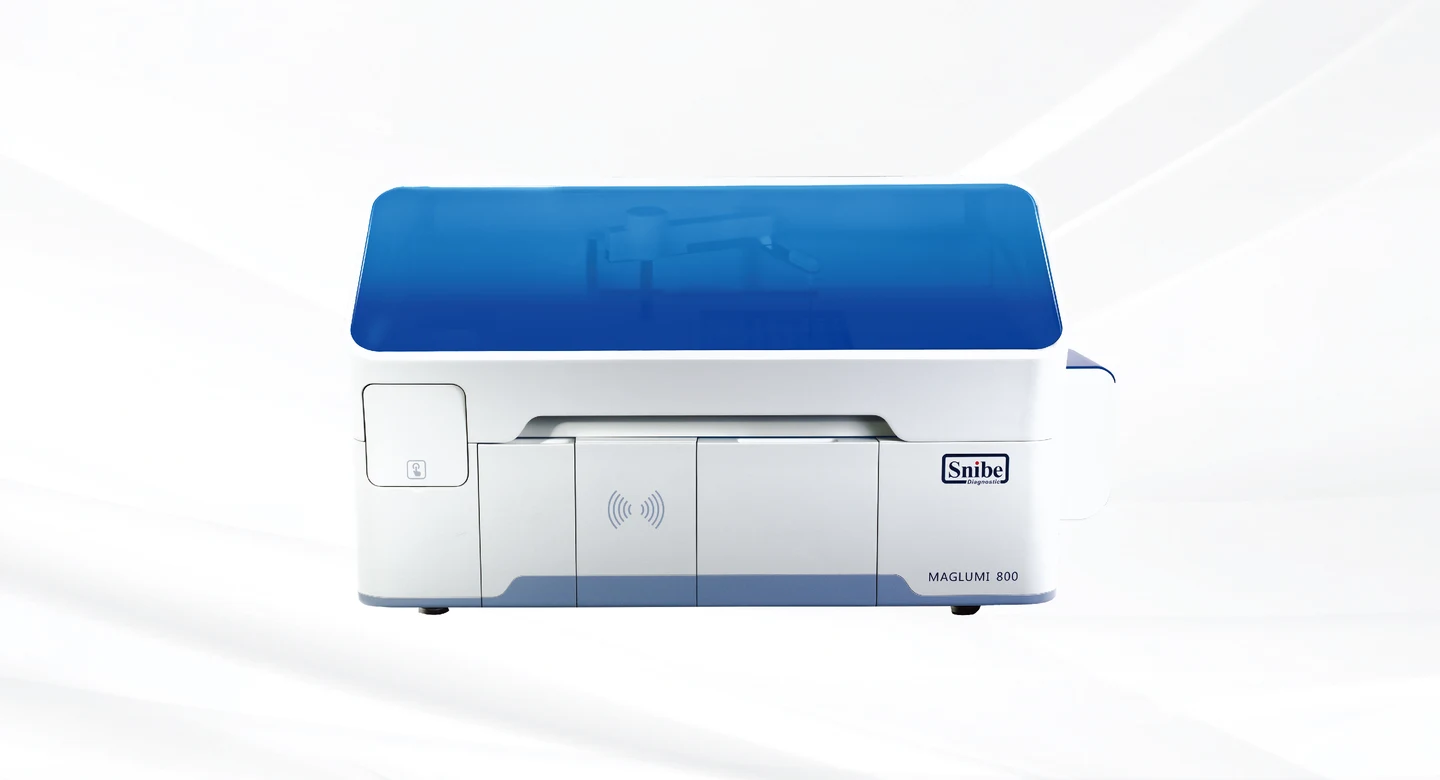

MAGLUMI 800
CLIA analyzers
Machines & equipment
Benchtop CLIA analyzer for small and mid-size laboratories, with up to 180 tests per hour.
01 / A CLOSER LOOK
Features that
define the product.
- Up to 180 tests per hour; 40 sample positions and 9 reagent positions.
- Random, batch and priority (STAT) operation with continuous loading.
- Refrigerated sample and reagent areas; sample barcode and reagent RFID identification.
- Clot and liquid-level detection, automatic dilution and bidirectional LIS connectivity.
02 / HOW IT WORKS
The technology.
Direct flash chemiluminescence using ABEI labelling and magnetic-microbead separation. The brochure describes a Teflon-coated titanium pipettor, magnetic washing and photomultiplier-tube detection.
03 / TECHNICAL DETAILS
Specifications.
| Throughput | Up to 180 tests/hour |
|---|---|
| Sample positions | 40 |
| Reagent positions | 9 |
| Cuvettes on board | Up to 240 |
| Time to first result | 17 minutes (brochure value; assay dependent) |
| Incubation | 36.8 ± 0.5 °C |
| Operating modes | Random, batch and STAT |
| Dimensions | 102 × 72 × 56 cm (manufacturer sequence) |
| Weight | 73 kg |
| Power | AC 110/230 V, 50/60 Hz; maximum 630 W |
| Connectivity | Bidirectional LIS via TCP/IP and COM |
