Medsource Ozone / Immunoassay

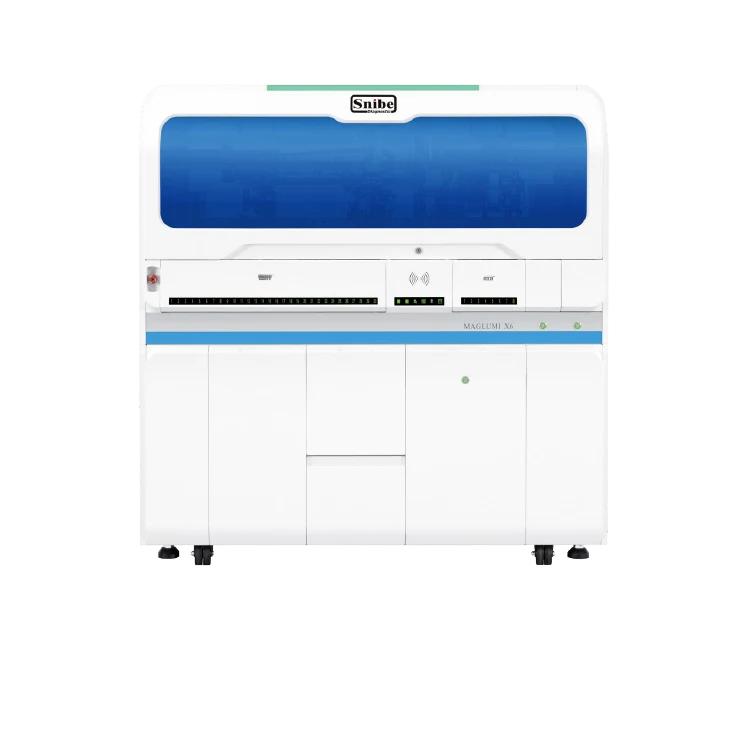

MAGLUMI X6
CLIA analyzers
Machines & equipment
Modular CLIA analyzer with 450 tests per hour, 112 standard sample positions and 30 reagent positions.
01 / A CLOSER LOOK
Features that
define the product.
- Up to 450 tests per hour and 2,000 walk-away tests.
- 112 standard sample positions and 30 reagent positions with continuous loading.
- 24-hour reagent-area refrigeration and RFID reagent identification.
- Automatic or manual wash-liquid preparation; one-sided operation.
- Expandable with additional modules and connectable to laboratory automation.
02 / HOW IT WORKS
The technology.
X-TECH chemiluminescence platform with disposable filtered sample tips, single-cuvette five-sided incubation, magnetic separation and non-contact washing, plus a temperature-controlled photomultiplier measuring chamber.
03 / TECHNICAL DETAILS
Specifications.
| Throughput | Up to 450 tests/hour (single module) |
|---|---|
| Sample positions | 112 standard |
| Optional sample expansion | Up to 412 with expansion, according to brochure |
| Reagent positions | 30 |
| Walk-away capacity | Up to 2,000 tests |
| Reagent working/storage temperatures | Working 8–12 °C; storage 2–8 °C |
| Incubation | 37 ± 0.3 °C |
| Tip capacity | Up to 384 |
| Dimensions | 148.2 × 94 × 155 cm (manufacturer sequence) |
| Weight | 450 kg |
| Connectivity | Bidirectional SnibeLIS via TCP/IP and COM; SnibeLinker; TLA/LAS integration |
