Meril Life Sciences / Biochemistry

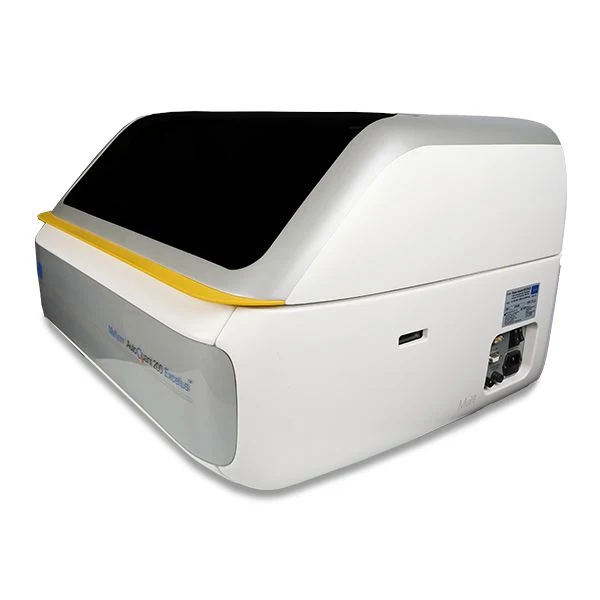

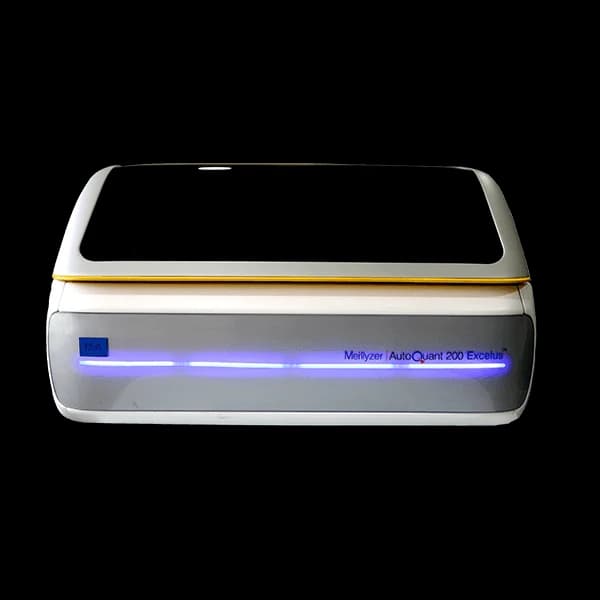

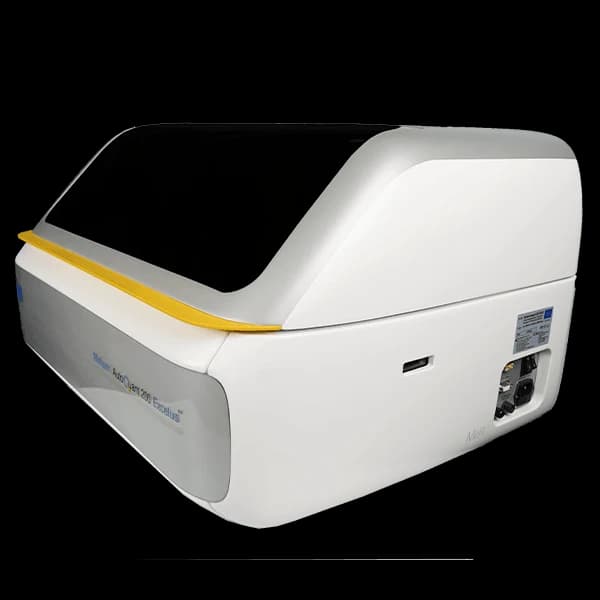

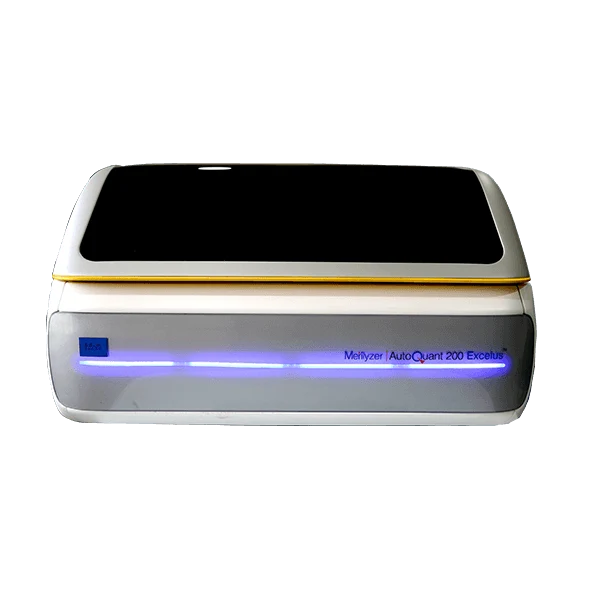

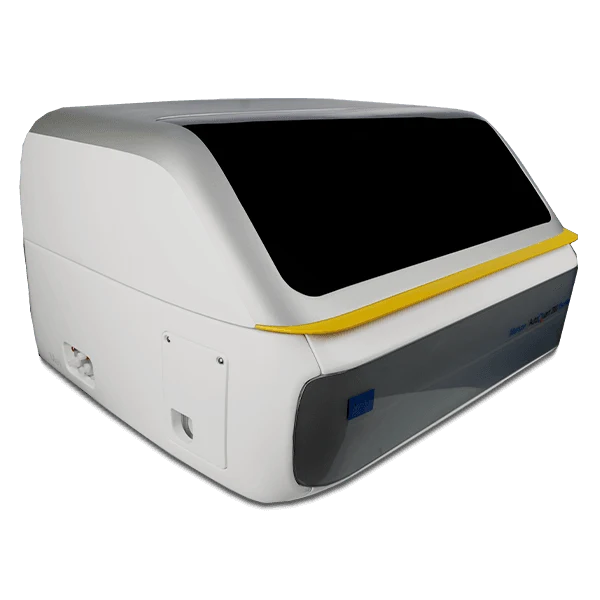

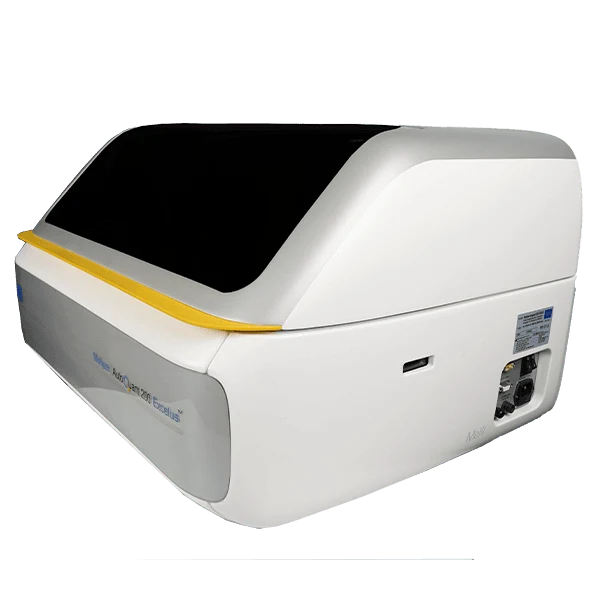

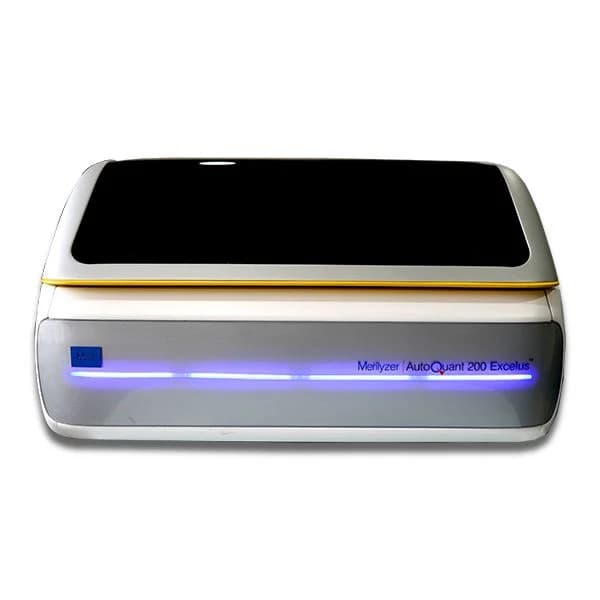

AutoQuant 200 Excelus®
AutoQuant Series
Machines & equipment
AutoQuant 200 Excelus fully automated biochemistry analyzer for clinical laboratories, supporting routine chemistry testing across parameters.
01 / A CLOSER LOOK
Features that
define the product.
- On board cooling and On board laundry system
- Option of three different wash for forbidden pairs to minimize the carry over
- Meril cutting edge technology for volume measurement by ceramic block piston
- Intuitive software of reflex testing and dedicated system packs
- Processing of emergency samples can be dealt on priority with STAT function
- Windows based software, compact design
02 / TECHNICAL DETAILS
Specifications.
| Throughput | Double Reagent: Max 200 Tests/hour, Single Reagent: Max 240 Tests/hour, ISE Optional |
|---|---|
| System Functions | Analysis method: End Point, Fixed Time (2-point), Kinetic Rate-A, Kinetic Rate-B |
| Sample / Reagent Processing | Sample position: 30 |
| Reaction System | Reaction cuvette: 60 (semi-disposable) |
| Optical System | Measurement principle: Photometry |
| Calibration | K-Factor, Linear (one, two, and multi-point), Logit-log, Spline, Exponential, Polynomial (second, third, and fourth order) |
| Data Storage | Test results: Unlimited tests |
| Quality Control | Real-time quality control based on Multi-rule method (mean, SD, %CV, R) for all parameters of sample replicates |
| Working Conditions | Power supply: 110/220 VAC, 50/60 Hz (Max. Power 250 W) |
| Operation System | Windows XP, Windows 7, Windows 8, Windows 10, or Winfix |
| Input and Output | Input: RS 232 interface/computer |
| Dimensions | 550 mm (W) × 420 mm (D) × 380 mm (H) |
| Weight | Approx. 23 kgs |
