Sensa Core / Blood Gas Analyzers
ST-200 CC ABGE Blood Gas Analyzer
Blood Gas Analyzers
Machines & equipment

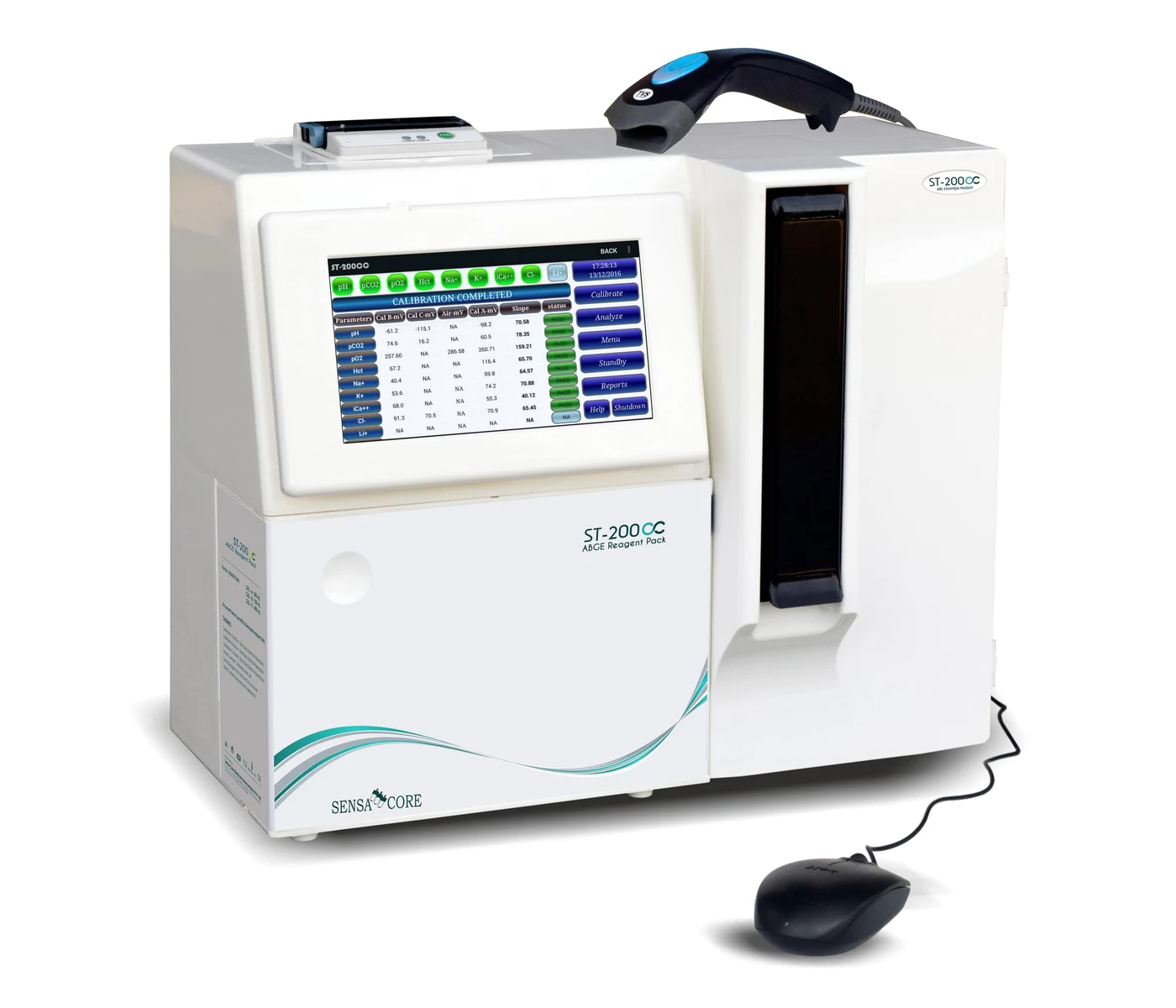

Sensa Core’s ST-200CC ABGE Blood Gas Analyzer is an automated, microprocessor-controlled electrolyte, blood gases and metabolites system that uses current ISE technology to make imbalance of electrolyte measurement, Impedance technology to make imbalance of HCT and Amperometry technology to make imbalance of gases and it has external barcode scanner, keyboard, and mouse.
01 / A CLOSER LOOK
Features that
define the product.
- Principle: Direct Measurement with ISE, Impedance (Hct) and Amperometry (pO2)
- Parameters: (ABG: pH, pCO2, pO2, Hct) (ISE: Na, K, iCa, Cl, Li, pH)(Calc: Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct, SBC)
- Sample volume: 140 µL
- Throughput: 55 Results
- Result time: 65 Seconds
- Display: 7 inch
02 / HOW IT WORKS
The technology.
Direct Measurement with ISE, Impedance (Hct) and Amperometry (pO2)
03 / TECHNICAL DETAILS
Specifications.
| Sample Volume | 140 µL |
|---|---|
| Sample Type | Whole Blood, Serum, Plasma, CSF & Diluted Urine |
| Parameters | (ABG: pH, pCO2, pO2, Hct) (ISE: Na, K, iCa, Cl, Li, pH)(Calc: Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct, SBC) |
| External Integration | Barcode Scanner, Mouse, Keypad (Any 2 at a Time) & LIS Integration (Serial Port) |
| Dimensions | 15 Width x 12 Length x 7 Height (Inch) |
| Weight | 8 Kg |
| Colour | Pearl White |
| Pump Mechanism | Long Lasting Comprehensive Lyte |
| Sample Storage | 200000+ |
| Language/s | 94+ Languages |
| Auto Sampler | Not Available |
| Principle | Direct Measurement with ISE, Impedance (Hct) and Amperometry (pO2) |
| Parameter Combinations | 14 Combinations |
| Touch Screen | Available (Capacitive Touch) |
| Operating System | Android |
| External Battery | Available (Optional) |
| Input Voltage | 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp. |
| Print Result | 2 Inch 24 Column Thermal Printer |
| Operating Atmosphere | Atmosphere: Temperature: 10 - 35 Degrees C, <85% Moisture |
| Acquirable Results / Hour | 55 Results |
| Result Time | 65 Seconds |
| Sample Mechanism | Semi-Auto Sampling |
| Display | 7 inch |
