Gluquant A1c
HPLC HbA1c Analyzer
Machines & equipment
Merilyzer GluquantA1c diabetes machine helps monitor & diagnose diabetes in patients. Visit Meril life for features & benefits or download brochure.
01 / A CLOSER LOOK
Features that
define the product.

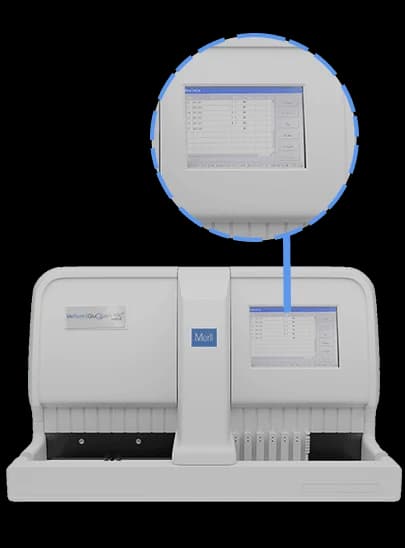

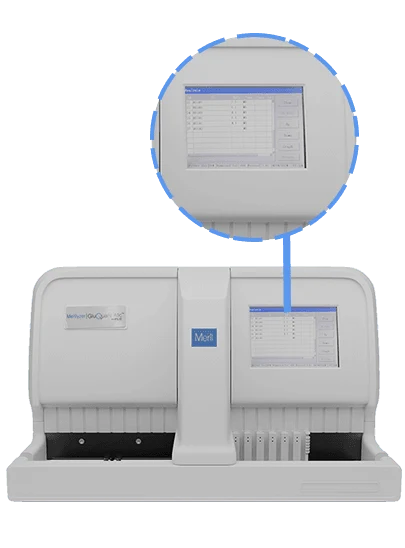

- Pressure, temperature and test quantity display

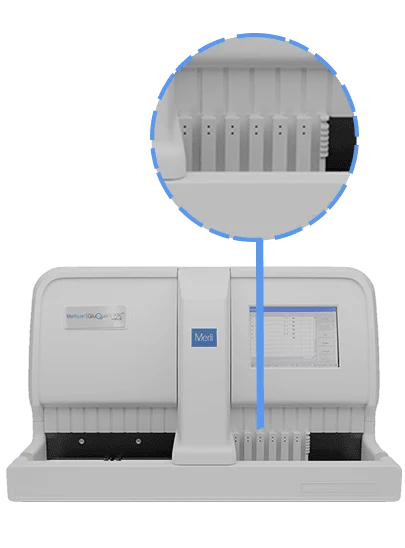

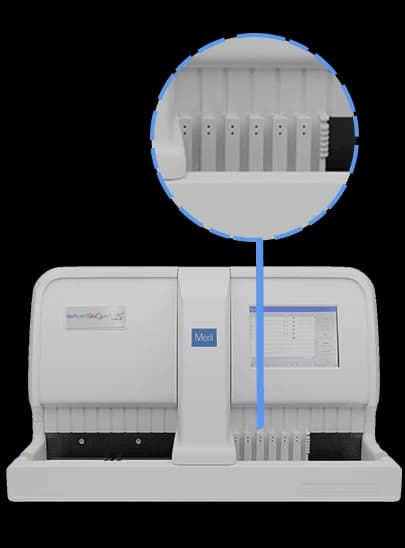

- Automatic sample entry, on board capacity of 50 samples
02 / HOW IT WORKS
The technology.
Principle - Ion Exchange High Performance Liquid Chromatography
03 / TECHNICAL DETAILS
Specifications.
| Principle | Ion Exchange High Performance Liquid Chromatography |
|---|---|
| Throughput | Sample cycle ≤ 150 secs/test |
| Sample | Whole blood mode (10 μl) / Diluted mode (150 μl) |
| Automatic sample entry: On-board capacity 50 samples, continuous loading | |
| Testing | Wavelength: 415 nm |
| Measuring range (NGSP): HbA1c 4 - 17%, r ≥ 0.99 | |
| Carried contaminating rate: ≤ 0.1% | |
| Precision: CV ≤ 2.0% | |
| Operating Conditions | Temperature: 15°C - 30°C |
| Humidity: 10 - 80% | |
| Power Requirement | Voltage: 220 / 240V |
| Frequency: 50 - 60 Hz | |
| Power: < 100VA | |
| Dimensions | 500 mm (W) x 610 mm (L) x 410 mm (H) |
| Net Weight | Approx. 28 Kgs |
